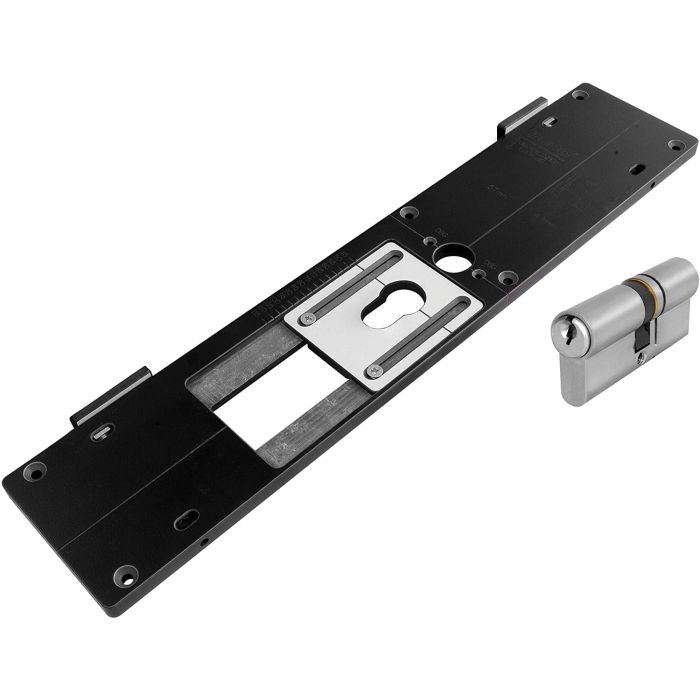

Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm.
Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.
44mm and 57mm back set.
Jig is designed to give a 1mm clearance around the barrel.
Allows 16mm diameter hole for handle spindle to be routed.
Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres.
Made from 12mm thick High Pressure Laminate for longer life.
Long rotating edge stops for use with 44mm doors with leading edge.
Reversible design.
Includes spacer pack to allow for slightly deeper back set.
Accessory sliding plates available for small oval and large oval cylinder locks.
Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush.
Cylinder not included.
