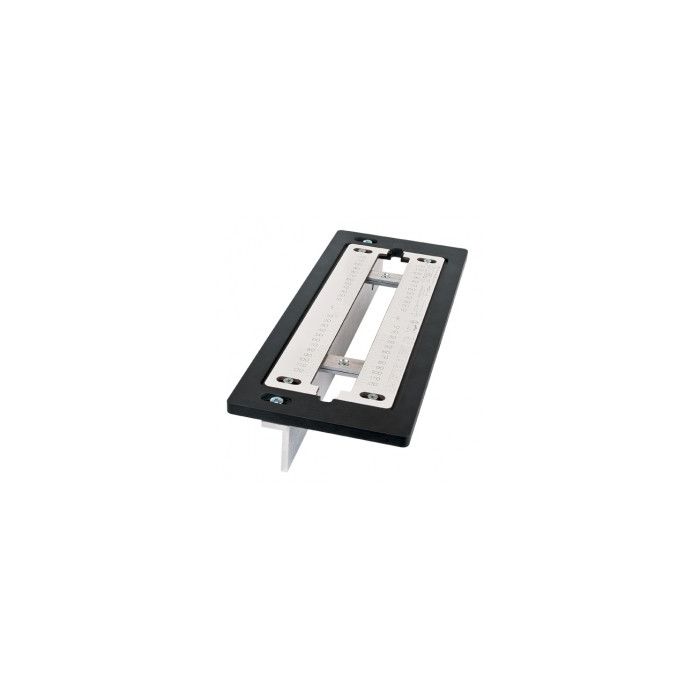

Fully adjustable for lock face plate length up to 250mm.
Quick and easy to set up using engraved lines for lock size and door sizes.
Fast, clean & accurate results on doors even in hardwood.
Engraved for 16mm and 19mm lock width and 22.5mm and 25.4mm face plate widths.
Measuring required for other lock widths.
Engraved on underside to allow set up for 35mm, 40mm, 44mm and 54mm door widths.
Deeper mortises can be achieved with a suitable size of auger bit.
Plastic laminate body with aluminium clamping bar, with clamping range 30mm to 80mm.
Includes a pair of setting blocks for specific lock widths and to aid door centring.
The jig requires a 1/2-inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 10mm spigot, 12mm diameter long reach cutter and two quick action clamps. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

Specification:
Door thickness min.: 30 mm
Door thickness max.: 80 mm
Faceplate length min.(OL): 30 mm
Faceplate length max. (OL): 250 mm
Width: 22.5 mm
Width: 25.4 mm (1 inch)
