Diameter quoted = Eccentric diameter
Colour/finish
zinc plated
Version

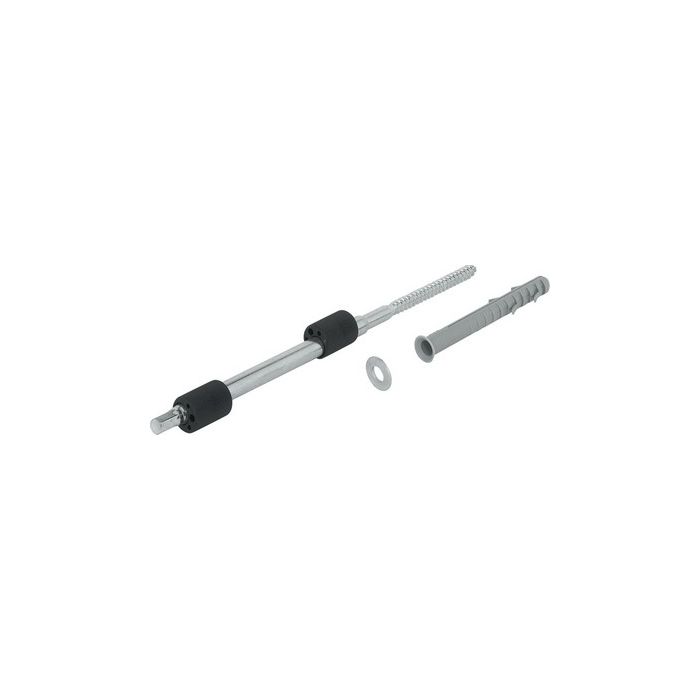

Support bolt with eccentric sleeve, wood-screw thread and wall plug
Area of application
For concealed installation
Material
Steel
Drive
SW6
Installation
For screw fixing to support element
For mounting in drilled hole in shelf
For installation into masonry walls
Installation reference
To insert the shelf support, drill out the board as shown in the drawing left
Level the shelf by laying it on the shelf supports and adjusting the eccentric screws before finally fixing the shelf in position
Adjustable in height and inclination:12 mm size: ±1 mm 14 mm size: ±2 mm
Supplied with
1 Supporting pin with threaded screw
2 Pre-mounted eccentric sleeves
1 Washer,
1 S8H 80R Fischer wall plug
Additional information attributes
Max. distance between two shelf supports: 700 mm
| Weight | 1.000000 |
|---|---|
| Is KIT Product | No |
| Brand | Hafele |
| Type | Shelf Support |
| Most Recent | No |
| Is Top | No |
| Warranty | Warranty |
| Ship Bundle Items | Together |
| Custom Width Enable | No |
Write Your Own Review
SHELF SUPPORT CONCEALED 14MMDIA - SOLD SINGULARLY 283.32.023
£7.13
SKU
283.32.023
- Buy 2 for £6.42 each and save 10%
- Buy 3 for £6.06 each and save 15%
- Buy 4 for £5.70 each and save 20%
- Buy 5 for £5.35 each and save 25%
- Buy 10 for £4.99 each and save 30%
- Buy 15 for £4.63 each and save 35%
- Buy 20 for £4.27 each and save 40%
For concealed mounting of shelves,, size: 14 mm, for min. shelf thickness: 22 mm
