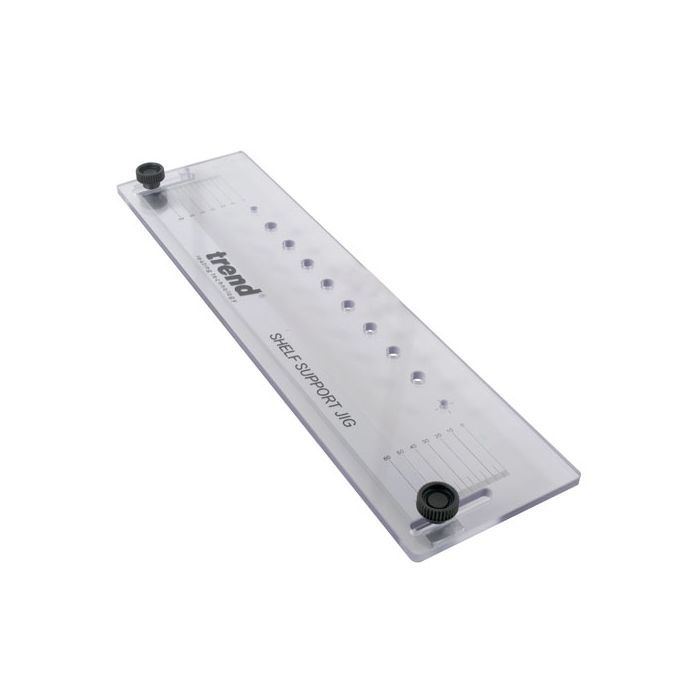

- The template is a clear plastic with an adjustable clamping bar with two locking knobs.
- Supplied with twelve 5mm metal shelf supports, one alloy knurled index pin and a 9.5mm diameter guide bush.
- Allows holes to be positioned from 10mm to 64mm from edge of board.
- This template can be used to add existing holes to a unit, or for user made shelves, the index lines to allow for easy setting up.
- Template can also be used with a power drill and an accessory quick release 5mm shelf support drill bit guide Ref. SNAP/SS/5MM or TEMP/SSD/5MM . This bit has a lip and spur drill fitted for drilling blind holes.
- Requires two clamps and 5mm TCT router dowel drill Ref. 61/05 or C174.
| Weight | 1.000000 |
|---|---|
| Is KIT Product | No |
| Brand | Trend |
| Most Recent | No |
| Is Top | No |
| Warranty | Warranty |
| Ship Bundle Items | Together |
| Custom Width Enable | No |
Write Your Own Review
TREND TEMP/SS/A TEMPLATE SHELF SUPPORT 32MM CENTRE
£58.88
SKU
TEMP/SS/A
A template to allow routing or drilling of 32mm centre holes for 5mm diameter shelf supports.
