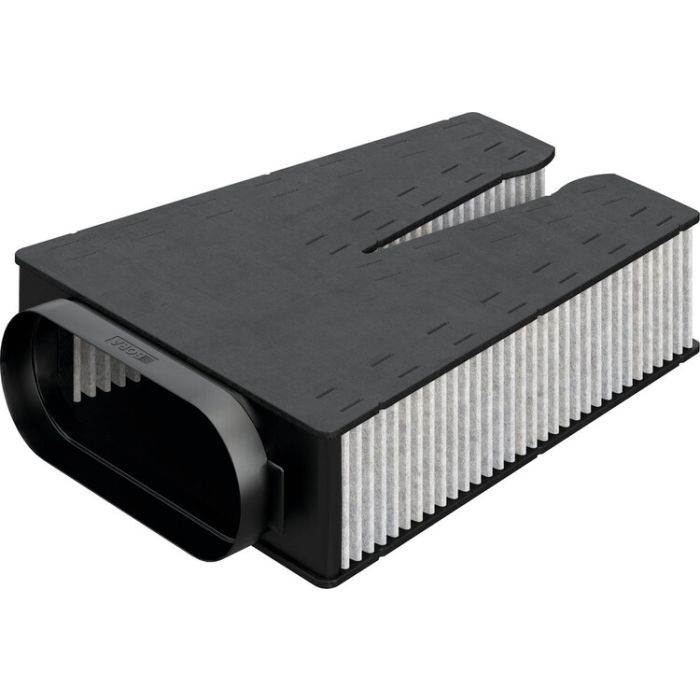

BORA Air Purification Box Flexible
Scope of delivery

• Flexible air purification box ULBF
• 1x filter mounting bracket
• 2 x flat seal EFD
• 1 x EF47
• 1 x EFA
• 1 x UDB1
• installation instructions

product- and planning instructions

• Clearance of at least 4 cm is required to replace the recirculation unit
• Suspended and horizontal installation options
• Moulded part with a shallow sleeve form
• Access for maintenance must be considered during planning
• Ensure minimum return flow aperture of 500 cm² (e.g. shortened plinth plate or slatted plinth)

Technical data
Dimensions (width x depth x height) 329 x 441 x 98 mm
Weight (incl. accessories/packaging) Approx. 2,5 kg
Casing material Plastic
duct connection BORA Ecotube
Filter material Activated charcoal made from coconut shells
Activated charcoal granulate volume 1.9 kg
Maximum filter service life 300 h (1,5 years)
