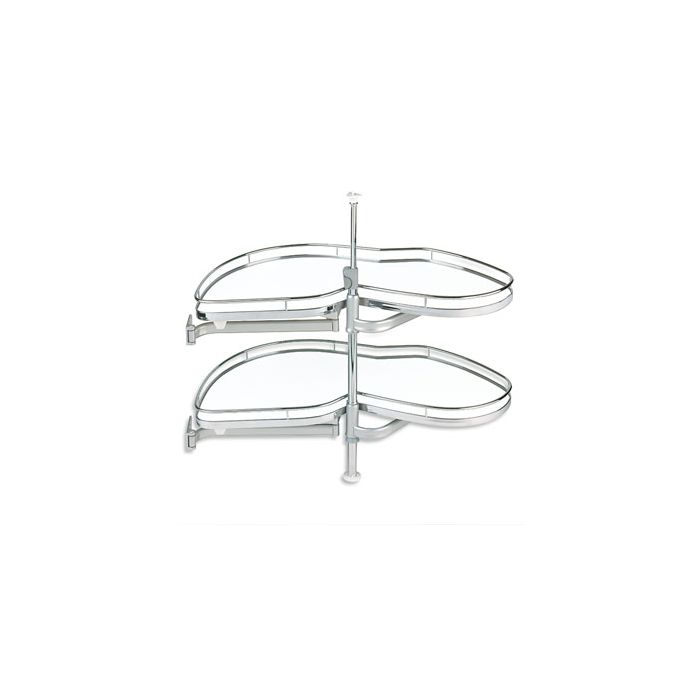

Great Use of Space Having a well-engineered corner cupboard solution makes great use of space that would otherwise be wasted. Peka's unique swivelling carousel system allows Fluid II's movement to be perfectly balanced, making it a real pleasure to use. Furthermore, Arena Non-Slip shelves mean items do not slide around when using the system.
Perfectly Balanced Motion With the least amount of effort, Fluid II's shelves glide out easily and smoothly into the open. Each shelf can be moved independently, to allow even easier access to the lower shelf.
Self Soft-Closing System When fitted, the optional self soft-closing system ensures Fluid II slides back into place smoothly, softly and automatically when it is two-thirds of the way into the unit.
Easy to Load Both shelves pull-out fully into the open from the cupboard in an elegant swivel movement, allowing them to be loaded easily from above.
Height Adjustable Shelves The height of the upper shelf of Fluid II can be adjusted at any time, even after the system has been installed.
Installation Secure the central pivot fixing into the cupboard using the supplied mounting brackets. With ClickFixx, clip the shelf support arms to the central pivot. Finally, secure the underside of the shelf to the shelf support arms.
PLEASE NOTE: Peka advise that the Fluid Corner II is only suitable for overlay door applications.
Tools Required Pencil, Tape measure, Drill & 3mm Drill Bit, Screw Driver
Consists Of:
2 x Arena Non-Slip Wooden Shelves
1 x Central Pivot Fixing
1 x Carcass Fitting
Assembly Material & Instructions
https://vimeo.com/504858922

Brand	PEKA
Ext. Cab Width	900mm
Fixing Method	Screw Fixing
Fixings Included	No
Frame Colour	White
Integrated Soft Close	No
Min. Int. Cab Depth	500mm
Min. Int. Cab Height	600 - 750mm
Min. Door Opening Angle	85°
Max. Load Capacity	50kg
LDL Guarantee	Lifetime
Shelf Colour	White
