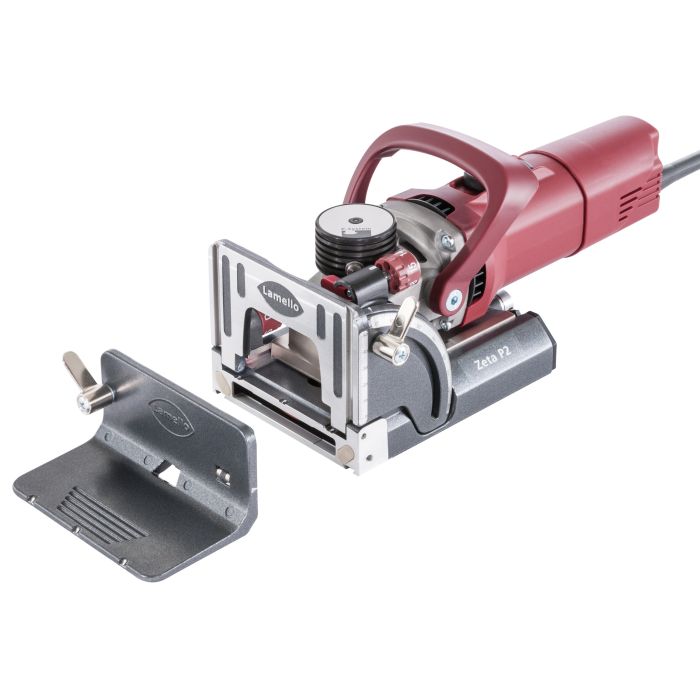

The Zeta P2 is the biscuit joiner for P-System connectors and is used to create the formlocking P-System goove within seconds.
The integrated vertical mechanical drive is automatically triggered at the maximum cutting depth and performs a lateral cutter movement for the P-System groove. Connectors with various functions and different sizes can now be inserted into the form-locking P-System groove. The insertion into the groove is quick and without tools.

Zeta P2 with diamond tipped cutter, in a systainer

Zeta P2
P-System cutter, diamond tipped
Stop square
Suction stubs 23 + 36 mm
Angle disc
Spacer 2 mm
Spacer 4 mm
Tool set
P-System drill jig incl. drill

P-System vertical mechanical drive

The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement.

P-System anchorage

Tool-free anchoring of connectors, without adhesive or screws.

P-System depth adjuster

Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18.

Wood elements

Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter.

Swivelling front stop with fixed pivot point

Join reliably with the cutter which is in the exact center between to two application surfaces

Multifunctional stop square

In addition to vertical stability resulting from the larger contact area, the stop quare enables variable adjustment of the groove position, 0-50 mm.

More Information

More Information
Weight	1.000000
Is KIT Product	No
Brand	Lamello
Most Recent	No
Is Top	No
Warranty	Warranty
Ship Bundle Items	Together
Custom Width Enable	No

Reviews

Write Your Own Review

You're reviewing:LAMELLO ZETA P2-SET P-GROOVE DP CUTTER 101403GBSD 240V SYSTAINER3 M + ACCESSORIES DIAMOND BLADE VERSION

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

LAMELLO ZETA P2-SET P-GROOVE DP CUTTER 101403GBSD 240V SYSTAINER3 M + ACCESSORIES DIAMOND BLADE VERSION

LAMELLO

Be the first to review this product

£1,407.25

SKU

101403GBSD

Notify me when the price drops

The machine for the evolving P-System, saving you time daily! Differentiate your products from the standard!

For the fast, form-locking anchorage of all P-System connectors in all angles
The automatic vertical movement creates a profile groove enabling insertion of the connectors by hand
Fast, easy and precise working with the well-known Lamello system
