• Impressive ergonomics and low weight for easy drilling and fastening.

• The compact, handy shape makes work easier, even in cramped spaces.

• Impressive performance: Thanks to the extremely powerful, brushless and therefore long-lasting EC-TEC motor.

• The ergonomic C-shape of the direct handle in the screwing axis enables more targeted power transmission and more precise work

• Quick conversion to drilling, screwdriving, angular drilling and angular screwdriving without the need for tools thanks to the FastFix interface.

• Numerous attachments for a variety of applications. All attachments for the current 18 V screwdrivers are compatible with CXS 12

• The depth stops and eccentric adapter enable depth-limited screwdriving close to edges.

• High-quality lithium-ion battery with workpiece-friendly rubber coating, charge indicator and 2.5 Ah for a long service life included in the scope of delivery. Compatible with all chargers in the Festool 18-volt cordless range

• Including exchangeable CENTROTEC tool chuck and 10 mm FastFix keyless chuck

• Integrated magnetic bit holder.

• The work area is optimally lit by LED lighting that can be switched on.

• Simply mobile. The CXS 12 comes in a practical lid compartment Systainer³ for quick access to drilling and screwdriving accessories

• 13 torque settings and torque switch-off for precision fastening.

• Robust belt clip that can be mounted on both sides.

Product highlights

Systematic right down to the finest detail.

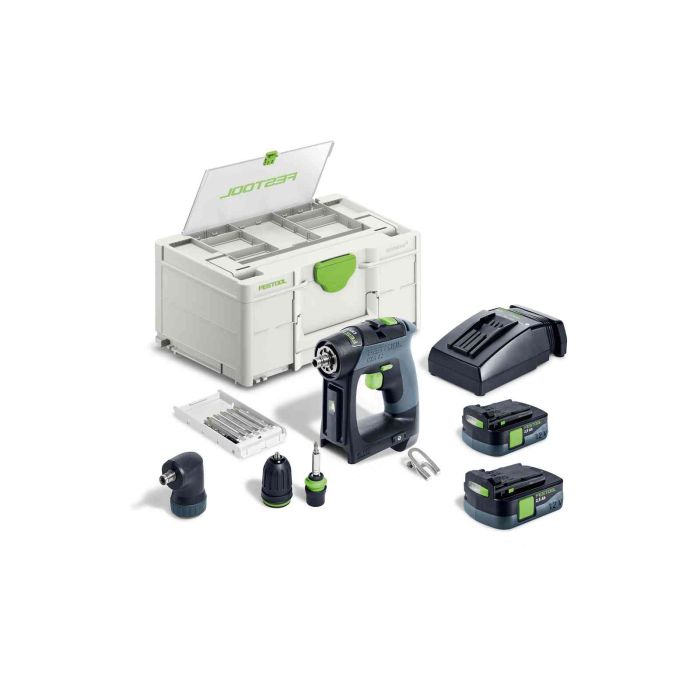

Small and really well-equipped. The CXS 12 cordless compact screwdriver comes with a compact battery pack compatible with all chargers in the 18-volt cordless range, a bit holder, LED light control, belt clip and the practical Systainer³.

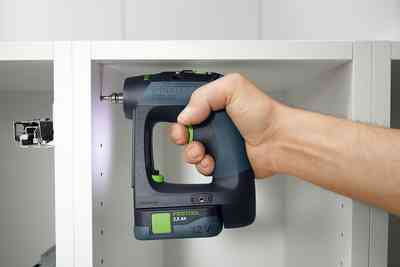

Short design

With a length of 15.6 cm and a height of 17.7 cm, the CXS 12 is extremely compact and ergonomic. With the handle positioned on the drilling and screwing axis directly behind the motor, the handy and perfectly balanced C-design enables extremely precise work.

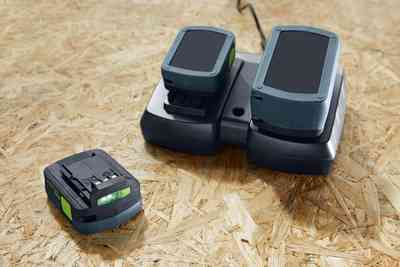

Compact 12 V battery pack

With workpiece-friendly rubber coating and charge indicator. Compactness combined with compatibility with all chargers in the Festool 18-volt cordless range.

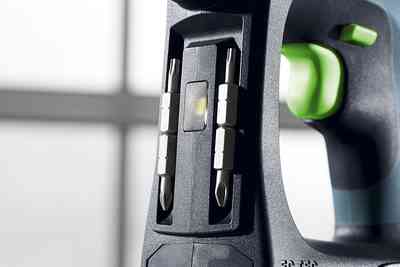

Bits always at hand

The practical integrated bit holder provides space for multiple bits – magnetically secured against falling out.

Impressive performance

The CXS 12 also performs impressively when working with Forstner drill bits up to 35 mm and screwdriving up to 6x200 mm in softwood (reference value for countersunk screws with partial thread in softwood. The maximum screw size that can be used varies depending on the screw type and wood type)

Usage

Main applications

• Furniture, fittings and kitchen assembly

• Installation of skirting boards, boxes, lamps, curtain rods

• Interior finishing

• Installation of skylights

• Manufacture of façade panelling and patio decks

• Light and medium drilling and screwdriving in wood, metal and plastic

• Screwdriving into wood up to 6x200 mm (reference value for countersunk screws with partial thread in softwood. The maximum screw size that can be used varies depending on the screw type and wood type)

• Drilling in wood up to dia. 35 mm with Forstner drill bits

Technical Data

Battery voltage (rated voltage)

10.8 V

Gears

2

Idling speed, 1st gear/2nd gear

0 - 470/0 - 1600 min⁻¹

Drilling diameter, wood/steel

35/10 mm

Torque adjustment 1st/2nd gear

1.1 - 8/0.4 - 2.3 Nm

Max. torque, wood/steel

17/30 Nm

Chuck range

1 - 10 mm

Battery capacity

2.50 Ah

Drive type

Battery

Product weight without accessories

0.70 kg

Transport weight incl. accessories

5.50 kg
