Scope of delivery
Wall sleeve dimensions (WxDxH) Ø 170 x 280 – 300 mm
Cover dimensions (WxDxH) 234 x 8 x 234 mm
Weight (incl. accessories/packaging) Approx. 2.0 kg
Material Plastic / stainless steel
duct connection BORA Ecotube
U-value according to EN ISO 12567-1 1,5 W/(m²K)
- BORA 3box UEBR
- Plaster cover
- installation instructions
- 1 x round seal ERD
- BORA 3box wall sleeve round safety guard UEBRES
- Core hole diameter Ø180 mm
- Duct connection Ecotube with a round bushing design
- Bushing length 45 mm (can be shortened by 20 mm)
- Suitable for a minimum wall depth of 280 mm
- The wall sleeve must not be installed rotated 180°, vertical or with the exhaust opening facing downwards
- The safety guard UEBRES is to be used if the distance between the fan exhaust opening and the wall sleeve exhaust opening is less than 900 mm in the case of a straight exhaust duct
- Must expel air in a straight line regardless of the weather conditions
Wall sleeve dimensions (WxDxH) Ø 170 x 280 – 300 mm
Cover dimensions (WxDxH) 234 x 8 x 234 mm
Weight (incl. accessories/packaging) Approx. 2.0 kg
Material Plastic / stainless steel
duct connection BORA Ecotube
U-value according to EN ISO 12567-1 1,5 W/(m²K)
| Weight | 1.000000 |
|---|---|
| Is KIT Product | No |
| Brand | BORA |
| Most Recent | No |
| Is Top | No |
| Warranty | Warranty |
| Ship Bundle Items | Together |
| Custom Width Enable | No |
Write Your Own Review

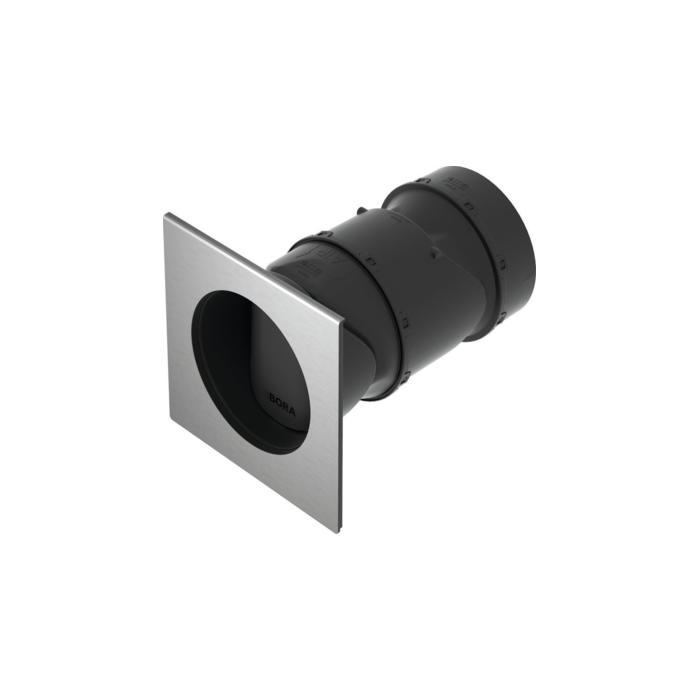

BORA 3box wall sleeve round
£277.20
SKU
UEBR
● Purely mechanical operation
● Two flaps with EPS insulation
● Outstanding insulation value
● Shortenable sleeve design
● Optimised opening pressure
● Reduced installation effort
● Plaster cover
● Integrated water drainage to the outside
● Low pressure resistance during operation
● UV resistant materials
